Advantage | Air-to-Water Heat Pump
The Enertech Advantage is a turnkey solution, bringing modern heating and cooling capabilities to life. Keep homes and buildings comfortable year-round with radiant heating, forced air cooling, and up to 100% domestic hot water for less money and with less hassle.
All-In-One
Utilizing the EM indoor module, radiant heating, forced air cooling, and up to 100% of domestic hot water is available in one packaged solution.
Save Money
Transferring heat using water saves 40% on operational costs when compared to standard air-source systems, and that’s not the only way you’ll save money with features like the ECM fan and inverter-driven technology and variable-speed compressor.
Maximum Comfort
Created with comfort in mind, the Advantage provides constant, even temperatures to a home. Whether its -13°f or 95°f outside, you can be sure that your home is the perfect temperature inside.
Available Indoor Modules

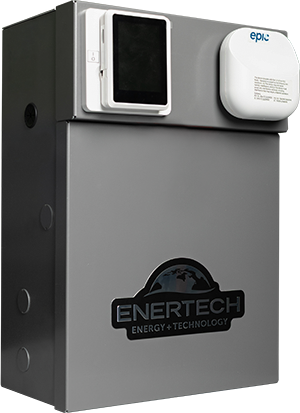

EM Flex (Controls-centric)
The Ultra-Modular Controls-centric Indoor Option For The Advantage System
While the EM (All-in-One) module is a great plug-and-play choice, installers have asked for more options and we’ve listened. The cost-effective EM Flex module removes the internal plumbing from our larger EM model opening up additional multi-unit and custom installation options.
- A cost-effective module opening up multi-unit installations
- Great for high-end homes and light commercial projects
- Unlock hot water generation for commercial applications
- Choose the exact components you want and leave out what you don’t for maximum flexibility
EM (All-in-One)
Features
- Available Sizes: 2.5 to 5 tons
- Efficiencies: Up to 5.12 COP / 17.1 IPLV
- Up to 100% Domestic Hot Water Supply
- Monobloc Design
- EPIC Connected Controls
- Inverter-Driven Technology and Vapor Injection, Variable-Speed Compressor
- Variable-Speed Internal Circulating Pump
- Pre-Installed Internal Expansion Tank
- Included Internal Flush Block
- Modulating Boiler Control
Capacity and Efficiency Ratings
| Model No. | Full Load Heating Capacity (BTUH) | COP at 47°F | COP at 17°F | Full Load Cooling Capacity (BTUH) | IPLV |
|---|---|---|---|---|---|
| AV030 | 36,360 | 4.40 | 3.08 | 21,480 | 16.0 |
| AV060 | 62,520 | 4.24 | 3.14 | 38,760 | 15.6 |
AV030
| Full Load Heating Capacity (BTUH) | 36,360 |
|---|---|
| COP at 47°F | 4.40 |
| COP at 17°F | 3.08 |
| Full Load Cooling Capacity (BTUH) | 21,480 |
| IPLV | 16.0 |
AV060
| Full Load Heating Capacity (BTUH) | 62,520 |
|---|---|
| COP at 47°F | 4.24 |
| COP at 17°F | 3.14 |
| Full Load Cooling Capacity (BTUH) | 38,760 |
| IPLV | 15.6 |
Heating capacities based upon 105°F LWT. Cooling capacities based on 95°F outside air temperature and 44°F LWT. Ratings tested in accordance with AHRI 550/590.
| California Energy Commission (CEC) Rating | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model No. | Cooling Capacity at 95°F (BTUH) | Cooling Capacity Tons at 95°F (BTUH) | EER | IPLV | Heat Capacity at 47°F (BTUH) | COP at 47°F | Heat Capacity at 17°F (BTUH) | COP at 17°F |
| AV030 | 21,360 | 1.78 | 7.70 | 16.0 | 36,960 | 3.8 | 28,320 | 2.8 |
| AV060 | 38,640 | 3.22 | 7.11 | 15.6 | 63,996 | 3.8 | 48,053 | 2.8 |
California Energy Commission (CEC) Rating
AV030
| Cooling Capacity at 95°F (BTUH) | 21,360 |
|---|---|
| Cooling Capacity Tons at 95°F (BTUH) | 1.78 |
| EER | 7.70 |
| IPLV | 16.0 |
| Heat Capacity at 47°F (BTUH) | 36,960 |
| COP at 47°F | 3.8 |
| Heat Capacity at 17°F (BTUH) | 28,320 |
| COP at 17°F | 2.8 |
AV060
| Cooling Capacity at 95°F (BTUH) | 38,640 |
|---|---|
| Cooling Capacity Tons at 95°F (BTUH) | 3.22 |
| EER | 7.11 |
| IPLV | 15.6 |
| Heat Capacity at 47°F (BTUH) | 63,996 |
| COP at 47°F | 3.8 |
| Heat Capacity at 17°F (BTUH) | 48,053 |
| COP at 17°F | 2.8 |
Heating capacities based on 120°F LWT. Cooling capacities based on 95°F outside air temperature and 44°F LWT. Ratings tested in accordance with AHRI 550/590.
Efficiency Comparison
Air-to-Water vs. Ground-Source vs. Air-to-Air
Save up to 40% in operating costs when compared to a traditional air-source system.
Install the Advantage for as little as $250/month!
Warranty
Our warranty is here to assist if the need arises. The standard warranty includes three years for all parts with seven years for the compressor and a 90 day out-of-the-box assurance. Discuss warranty options with the installer for a full explanation of coverage. Please register and double-check coverage online using the serial number within 60 days of installation.
Ready to gain energy independence with Enertech?
See this product (and others) in action.
Electric-powered and energy-efficient, pairing well with a solar PV system.
Advantage Training
Online training for our Advantage air-to-water heat pump is available for licensed heating, cooling, and/or plumbing contractors with EPA certification.
