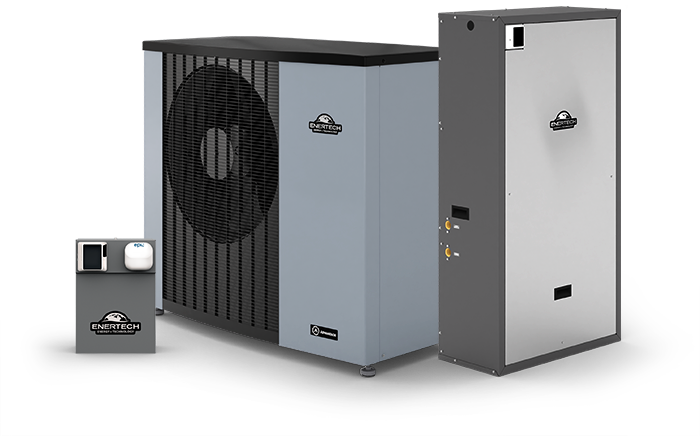

Air-to-Water Heat Pump

A turnkey solution, bringing modern heating and cooling capabilities to life. Keep homes and buildings comfortable year-round with radiant heating, forced air cooling, and domestic hot water for less money and with less hassle.

All-In-One

Radiant heating, forced air cooling, and up to 100% of domestic hot water in one packaged solution.

Save Money

Transferring heat using water saves 40% on operational costs when compared to standard air-source systems, and that’s not the only way you’ll save money with features like the ECM fan and inverter-driven technology and variable-speed compressor.

Maximum Comfort

Created with comfort in mind, the Advantage provides constant, even temperatures to a home. Whether its -13°f or 95°f outside, you can be sure that your home is the perfect temperature inside.

Features

  • Available Sizes: 2.5 to 5 tons
  • Efficiencies: Up to 5.12 COP / 17.1 IPLV
  • Up to 100% Domestic Hot Water Supply
  • Monobloc Design
  • EPIC Connected Controls
  • Inverter-Driven Technology and Vapor Injection, Variable-Speed Compressor
  • Variable-Speed Internal Circulating Pump
  • Pre-Installed Internal Expansion Tank
  • Included Internal Flush Block
  • Modulating Boiler Control

Capacity and Efficiency Ratings

Model No. Full Load Heating Capacity (BTUH) COP at 47°F COP at 17°F Full Load Cooling Capacity (BTUH) IPLV
AV030 36,360 4.40 3.08 21,480 16.0
AV060 62,520 4.24 3.14 38,760 15.6

AV030

Full Load Heating Capacity (BTUH) 36,360
COP at 47°F 4.40
COP at 17°F 3.08
Full Load Cooling Capacity (BTUH) 21,480
IPLV 16.0

AV060

Full Load Heating Capacity (BTUH) 62,520
COP at 47°F 4.24
COP at 17°F 3.14
Full Load Cooling Capacity (BTUH) 38,760
IPLV 15.6
Heating capacities based upon 105°F LWT. Cooling capacities based on 95°F out air temperature and 44°F LWT. Ratings tested in accordance with AHRI 550/590.
California Energy Commission (CEC) Rating
Model No. Cooling Capacity at 95°F (BTUH) Cooling Capacity Tons at 95°F (BTUH) EER IPLV Heat Capacity at 47°F (BTUH) COP at 47°F Heat Capacity at 17°F (BTUH) COP at 17°F
AV030 21,360 1.78 7.70 16.0 36,960 3.8 28,320 2.8
AV060 38,640 3.22 7.11 15.6 63,996 3.8 48,053 2.8

California Energy Commission (CEC) Rating

AV030

Cooling Capacity at 95°F (BTUH) 21,360
Cooling Capacity Tons at 95°F (BTUH) 1.78
EER 7.70
IPLV 16.0
Heat Capacity at 47°F (BTUH) 36,960
COP at 47°F 3.8
Heat Capacity at 17°F (BTUH) 28,320
COP at 17°F 2.8

AV060

Cooling Capacity at 95°F (BTUH) 38,640
Cooling Capacity Tons at 95°F (BTUH) 3.22
EER 7.11
IPLV 15.6
Heat Capacity at 47°F (BTUH) 63,996
COP at 47°F 3.8
Heat Capacity at 17°F (BTUH) 48,053
COP at 17°F 2.8
Heating capacities based on 120°F LWT. Cooling capacities based on 95°F out air temperature and 44°F LWT. Ratings tested in accordance with AHRI 550/590.

Efficiency Comparison (COP)

Save Up to 40%

Save up to 40% in operating costs when compared to a traditional air-source system.

Install the Advantage for as little as $250/month!
To learn more about payment plan options, request our Flexible Financing Guide

Warranty

Our warranty is here to assist if the need arises. The standard warranty includes three years for all parts with seven years for the compressor and a 90 day out-of-the-box assurance. Discuss warranty options with the installer for a full explanation of coverage. Please register and double-check coverage online using the serial number within 60 days of installation.
