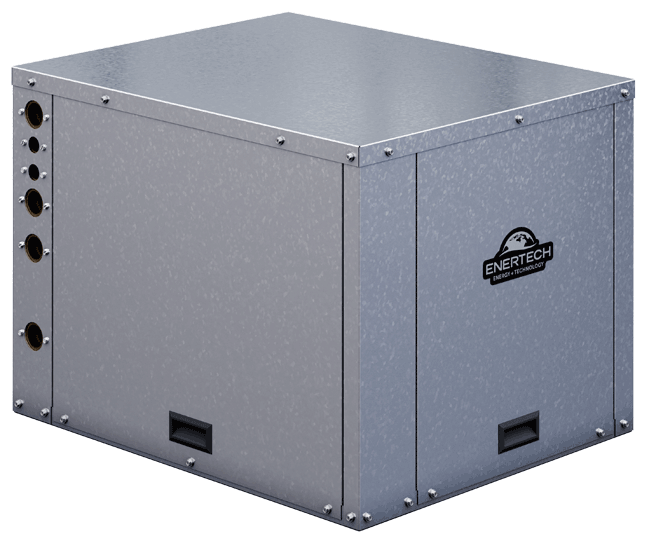

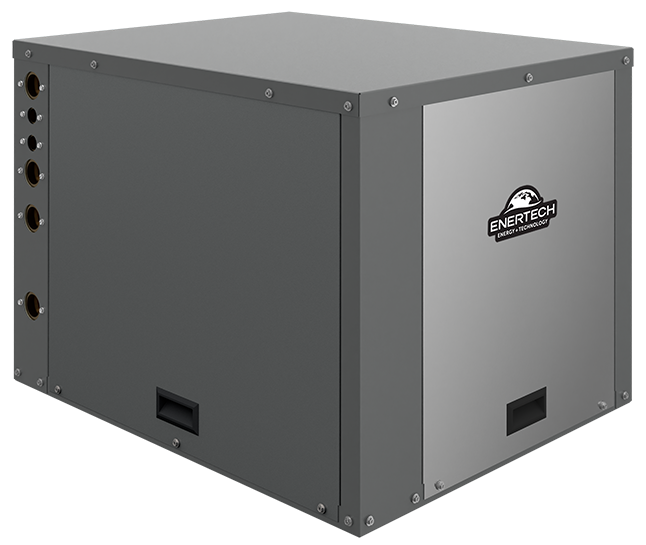

WS | Single-Stage Water–to–Water

The Single-Stage, Water–to–Water (WS) heat pumps create heated or chilled water for use in a variety of heating and cooling applications, including radiant floor heating. These systems are lighter and more efficient than other water–to–water heat pumps and come standard with hot water assist for 25%–40% cost savings on hot water annually. These heat pumps are a fit for small to large homes, net-zero homes, new construction or existing homes, storage buildings, and other structures where radiant heating is needed.
COMPATIBLE WITH ENERTECH’S *NEW* HYDRONIC AIR HANDLER & CASED COIL
Enertech’s line of Hydronic air handlers and cased coils are a perfect match for our water-to-water units. Maximize comfort and quality by pairing the two together in your next project.
FEATURES
- Available Sizes: 3 – 7 tons
- Efficiencies: Up to 17.3 EER / 3.2 COP
- Hot water assist
- UL GREENGUARD Gold certified cabinet insulation
- Heavy gauge steel
- Single-stage compressor
- Temperature sensor as part of system safeties
Document Downloads:
Model Specifications:
Model | WS036 | |
---|---|---|
CAPACITY | Full Load | Part Load |
COOLING BTU/HR | 36,100 | – |
COOLING EER | 17.3 | – |
HEATING BTU/HR | 31,600 | – |
HEATING COP | 3.1 | – |
Model | WS048 | |
---|---|---|
CAPACITY | Full Load | Part Load |
COOLING BTU/HR | 49,400 | – |
COOLING EER | 16.6 | – |
HEATING BTU/HR | 45,700 | – |
HEATING COP | 3.2 | – |
Model | WS060 | |
---|---|---|
CAPACITY | Full Load | Part Load |
COOLING BTU/HR | 58,100 | – |
COOLING EER | 16.5 | – |
HEATING BTU/HR | 53,700 | – |
HEATING COP | 3.2 | – |
Model | WS072 | |
---|---|---|
CAPACITY | Full Load | Part Load |
COOLING BTU/HR | 72,500 | – |
COOLING EER | 16.7 | – |
HEATING BTU/HR | 62,800 | – |
HEATING COP | 3.1 | – |
Model | WS084 | |
---|---|---|
CAPACITY | Full Load | Part Load |
COOLING BTU/HR | 84,300 | – |
COOLING EER | 16.1 | – |
HEATING BTU/HR | 70,100 | – |
HEATING COP | 3.1 | – |
We offer many optional accessories for each of our geothermal units:
