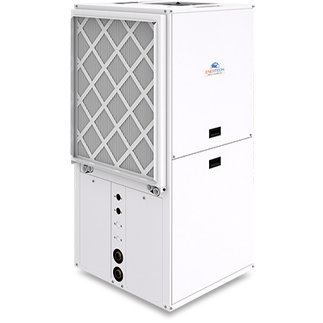

XT | Two-Stage Vertical Packaged

The Multi-Position, Vertical Packaged (XT) heat pumps are used to provide forced-air heating and cooling and come standard with hot water assist. With the XT's high efficiencies, homeowners will see savings of up to 70% on heating and cooling costs and up to 40% savings on hot water costs annually. Crafted for flexible field installation options, these systems are a fit for homes of any size, agricultural facilities, and more.

Warranty Details

FEATURES

Available sizes: 2 - 6 tons
Efficiencies: Up to 24.9 EER / 4.8 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Two-stage compressor
Variable-speed fan
Temperature sensor as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

Model	XT024
CAPACITY	XT024	Full Load	Part Load
COOLING BTU/HR	27,200	21,400
COOLING EER	20.3	29.1
HEATING BTU/HR	19,800	16,600
HEATING COP	4.3	4.8

Model	XT036
CAPACITY	XT036	Full Load	Part Load
COOLING BTU/HR	38,900	29,900
COOLING EER	18.3	27.0
HEATING BTU/HR	29,200	23,200
HEATING COP	4.2	4.6

Model	XT048
CAPACITY	XT048	Full Load	Part Load
COOLING BTU/HR	49,000	37,400
COOLING EER	17.1	24.1
HEATING BTU/HR	38,200	29,700
HEATING COP	3.9	4.3

Model	XT060
CAPACITY	XT060	Full Load	Part Load
COOLING BTU/HR	63,000	49,000
COOLING EER	17.8	24.9
HEATING BTU/HR	47,700	38,600
HEATING COP	3.7	4.3

Model	XT072
CAPACITY	XT072	Full Load	Part Load
COOLING BTU/HR	71,100	57,500
COOLING EER	17.1	23.0
HEATING BTU/HR	55,900	46,700
HEATING COP	3.6	4.1
