ZS/ZT

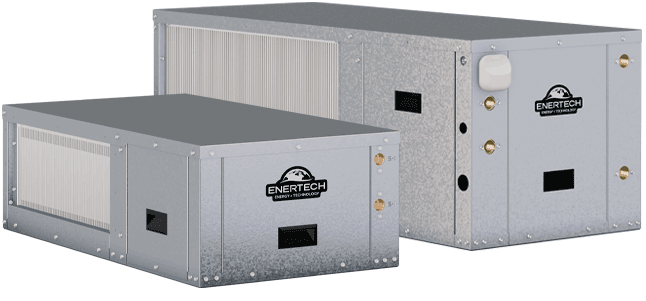

ZS/ZT | Compact Horizontal Packaged

The Compact Horizontal Packaged (ZS/ZT) heat pumps are small and versatile, fitting between standard 24" trussing. The small size of these heat pumps makes them perfect for replacing older water-source heat pumps. These models come standard with hot water assist for 25% - 40% savings on hot water costs annually. As a lighter unit with high efficiencies, these systems are ideal for new and existing homes of all sizes, net-zero projects, storage buildings, and more.

COMPATIBLE WITH THE EPIC CONNECTED CONTROLS

Our proprietary EPIC connected controls provide unprecedented insights into the usage, efficiency, and performance of your geothermal system – all in real time! See how to maximize your home’s comfort with EPIC.

More About Epic Connected Controls

Warranty Details

FEATURES

Available sizes: 0.5 - 6 tons
Efficiencies: Up to 29.8 EER / 4.4 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Single- and two-stage compressor options
Variable-speed fan
Temperature system as part of system safeties
All-aluminum microchannel air coil

Learn More

Document Downloads:

Model Specifications:

Model	ZS006 208/230V
CAPACITY	ZS006 208/230V	Full Load	Part Load
COOLING BTU/HR	6,900	-
COOLING EER	17.1	-
HEATING BTU/HR	5,200	-
HEATING COP	3.5	-

Model	ZS006 265/115V
CAPACITY	ZS006 265/115V	Full Load	Part Load
COOLING BTU/HR	6,500	-
COOLING EER	16.2	-
HEATING BTU/HR	5,000	-
HEATING COP	3.3	-

Model	ZS009 208/230V
CAPACITY	ZS009 208/230V	Full Load	Part Load
COOLING BTU/HR	9,600	-
COOLING EER	16.7	-
HEATING BTU/HR	7,500	-
HEATING COP	3.5	-

Model	ZS009 265/115V
CAPACITY	ZS009 265/115V	Full Load	Part Load
COOLING BTU/HR	9,200	-
COOLING EER	15.9	-
HEATING BTU/HR	7,100	-
HEATING COP	3.3	-

MODEL	ZS012
CAPACITY	ZS012	Full Load	Part Load
COOLING BTU/HR	11,300	-
COOLING EER	14.1	-
HEATING BTU/HR	9,500	-
HEATING COP	3.2	-

MODEL	ZS015
CAPACITY	ZS015	Full Load	Part Load
COOLING BTU/HR	15,300	-
COOLING EER	19.2	-
HEATING BTU/HR	11,100	-
HEATING COP	3.8	-

MODEL	ZS017
CAPACITY	ZS017	Full Load	Part Load
COOLING BTU/HR	18,300	-
COOLING EER	18.6	-
HEATING BTU/HR	13,400	-
HEATING COP	3.7	-

MODEL	ZS018
CAPACITY	ZS018	Full Load	Part Load
COOLING BTU/HR	20,500	-
COOLING EER	18.2	-
HEATING BTU/HR	14,400	-
HEATING COP	3.6	-

MODEL	ZS024
CAPACITY	ZS024	Full Load	Part Load
COOLING BTU/HR	25,200	-
COOLING EER	18.7	-
HEATING BTU/HR	18,600	-
HEATING COP	3.7	-

MODEL	ZS030
CAPACITY	ZS030	Full Load	Part Load
COOLING BTU/HR	30,300	-
COOLING EER	19.1	-
HEATING BTU/HR	21,900	-
HEATING COP	3.7	-

MODEL	ZS036
CAPACITY	ZS036	Full Load	Part Load
COOLING BTU/HR	37,600	-
COOLING EER	18.1	-
HEATING BTU/HR	27,800	-
HEATING COP	3.7	-

MODEL	ZS042
CAPACITY	ZS042	Full Load	Part Load
COOLING BTU/HR	43,400	-
COOLING EER	19.8	-
HEATING BTU/HR	32,800	-
HEATING COP	3.9	-

MODEL	ZS048
CAPACITY	ZS048	Full Load	Part Load
COOLING BTU/HR	48,500	-
COOLING EER	17.8	-
HEATING BTU/HR	38,500	-
HEATING COP	3.6	-

MODEL	ZS060
CAPACITY	ZS060	Full Load	Part Load
COOLING BTU/HR	60,500	-
COOLING EER	17.8	-
HEATING BTU/HR	49,200	-
HEATING COP	3.8	-

MODEL	ZS072
CAPACITY	ZS072	Full Load	Part Load
COOLING BTU/HR	70,600	-
COOLING EER	17.2	-
HEATING BTU/HR	57,400	-
HEATING COP	3.5	-

MODEL	ZT024
CAPACITY	ZT024	Full Load	Part Load
COOLING BTU/HR	26,800	20,700
COOLING EER	19.8	28.8
HEATING BTU/HR	18,100	14,900
HEATING COP	4.0	4.3

MODEL	ZT030
CAPACITY	ZT030	Full Load	Part Load
COOLING BTU/HR	32,000	24,800
COOLING EER	18.0	24.9
HEATING BTU/HR	22,600	18,700
HEATING COP	3.7	4.0

MODEL	ZT036
CAPACITY	ZT036	Full Load	Part Load
COOLING BTU/HR	38,200	28,900
COOLING EER	19.9	29.8
HEATING BTU/HR	27,600	21,200
HEATING COP	4.1	4.4

MODEL	ZT042
CAPACITY	ZT042	Full Load	Part Load
COOLING BTU/HR	42,600	33,100
COOLING EER	19.1	26.2
HEATING BTU/HR	31,500	25,900
HEATING COP	3.7	4.0

MODEL	ZT048
CAPACITY	ZT048	Full Load	Part Load
COOLING BTU/HR	49,800	39,700
COOLING EER	18.3	26.6
HEATING BTU/HR	37,900	29,600
HEATING COP	3.9	4.3

MODEL	ZT060
CAPACITY	ZT060	Full Load	Part Load
COOLING BTU/HR	61,200	47,300
COOLING EER	18.7	26.9
HEATING BTU/HR	48,100	34,200
HEATING COP	3.9	4.1

MODEL	ZT072
CAPACITY	ZT072	Full Load	Part Load
COOLING BTU/HR	70,400	57,100
COOLING EER	18.0	25.2
HEATING BTU/HR	57,900	47,600
HEATING COP	3.8	4.2
