Nussbaum Transportation

Hudson, IL
nussbaum office area b34d0b79

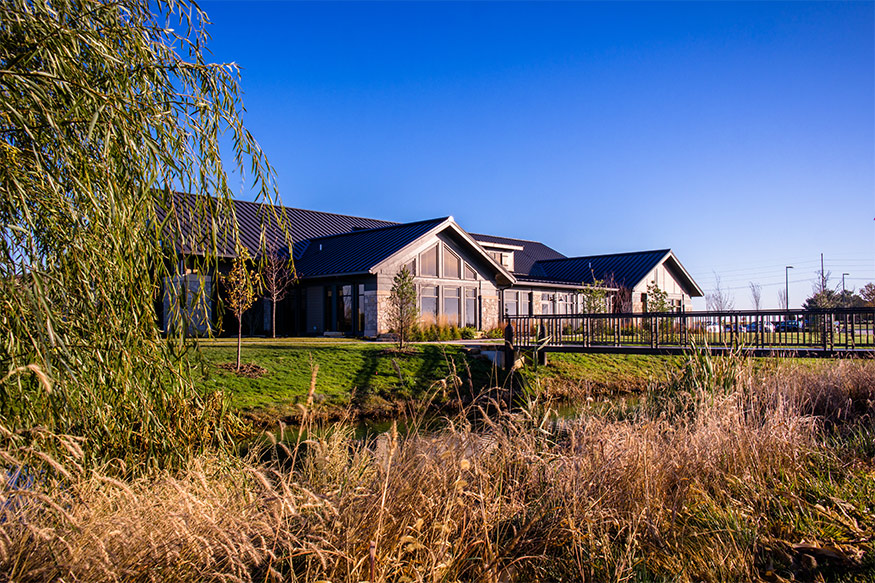

nussbaum back 88d4f64d
nussbaum break room 91089b73

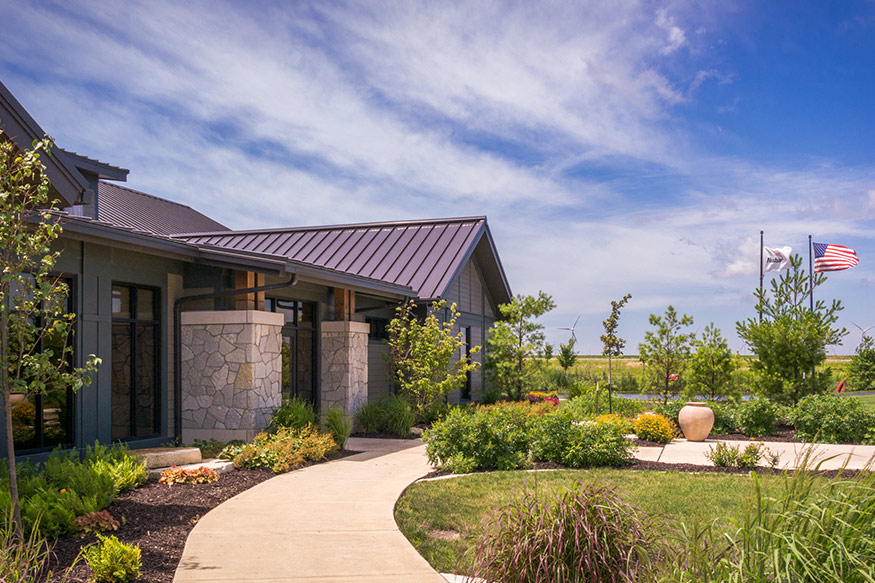

nussbaum front entrace side view df340579

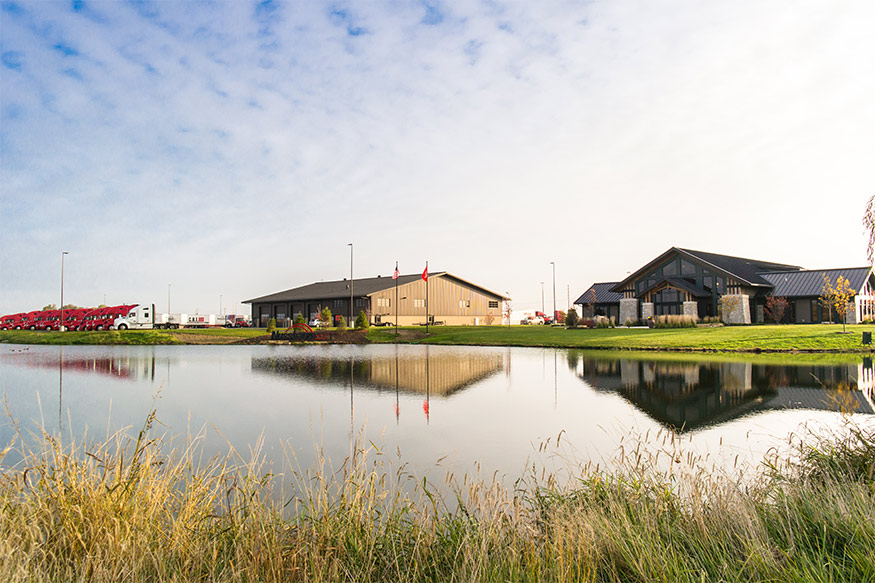

nussbaum truck fleet f67d63c4

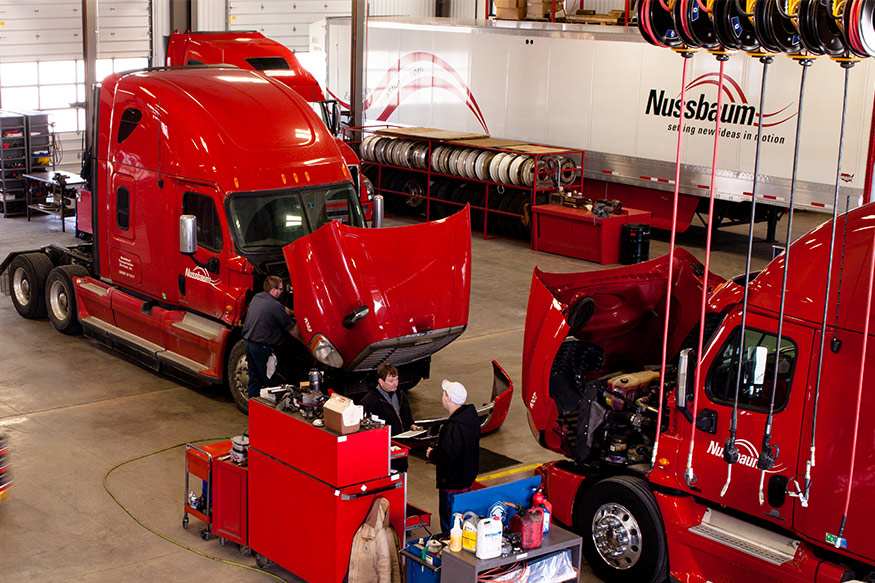

nussbaum trucks cbf854b9

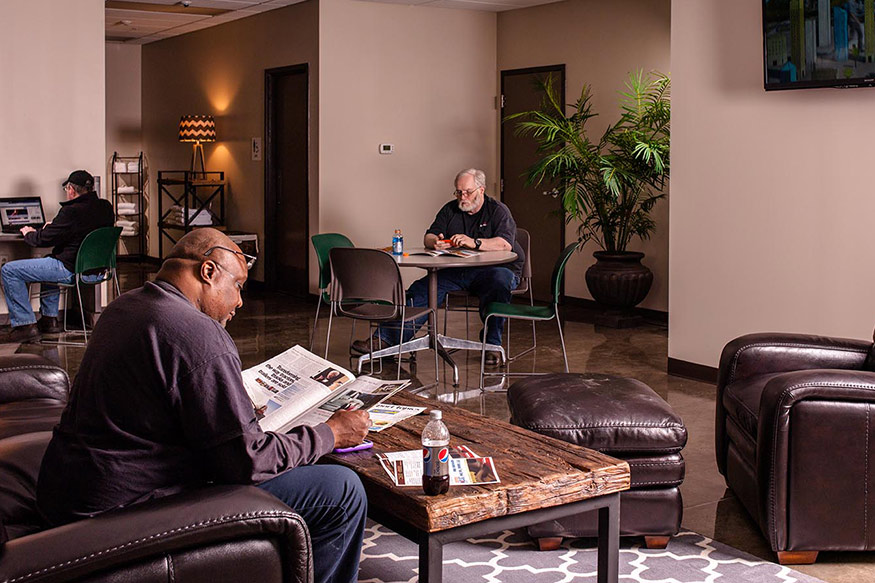

nussbaum truck waiting room 239642b4

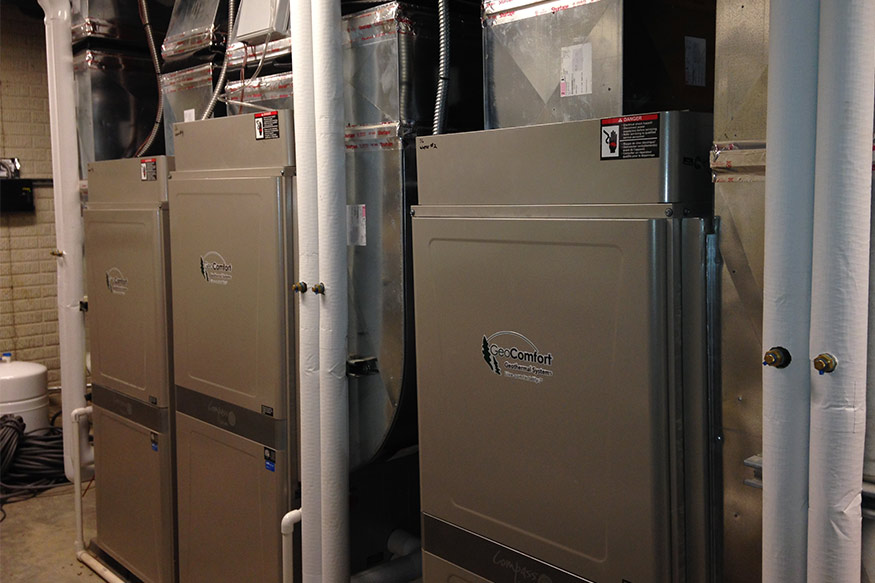

nussbaum mechanical room a3a10fba

Project Details

construction new d95992b7
New Construction
loop vertical 86ca017c
Vertical Loop
system combo 3ed6b2f3
Combination
dimensions 46e2d2c3
31000 sq. ft.

Project Description

Nussbaum Transportation is a trucking company based in Illinois that has been in business for over 70 years. In 2013, Nussbaum constructed a new corporate campus including a state-of-the-art maintenance building and a corporate office building. Some of the driver amenities in their new headquarters include private shower rooms and an inviting and comfortable driver lounge. The campus also features a peaceful pond and a walking path. The office interior replicates a western lodge design with wood trussing and floors, stone pillars, large windows, and mahogany doors.

Installation Details

In the maintenance building, two 10-ton water-to-water units are used for radiant floor heat, a 3-ton multi-positional vertical packaged unit is used for the small office and locker room, and a 6-ton multi-positional vertical packaged unit for 2nd-floor driver lounge and break room. In the office building, there are 11 radiant and 11 forced air zones, powered by four series combination units (19 tons total) for forced air cooling and hot water for radiant floor heat; three multi-positional vertical packaged units (15 tons total) for the remaining cooling load.

Savings

30% – 70% annual savings on heating and cooling costs.

Partners Involved

Bratcher Heating, A/C, Geothermal
