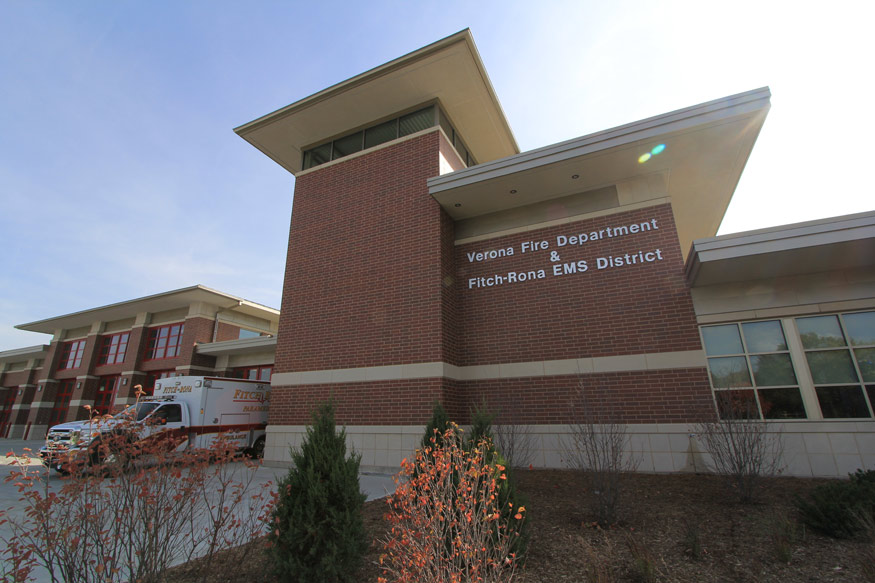

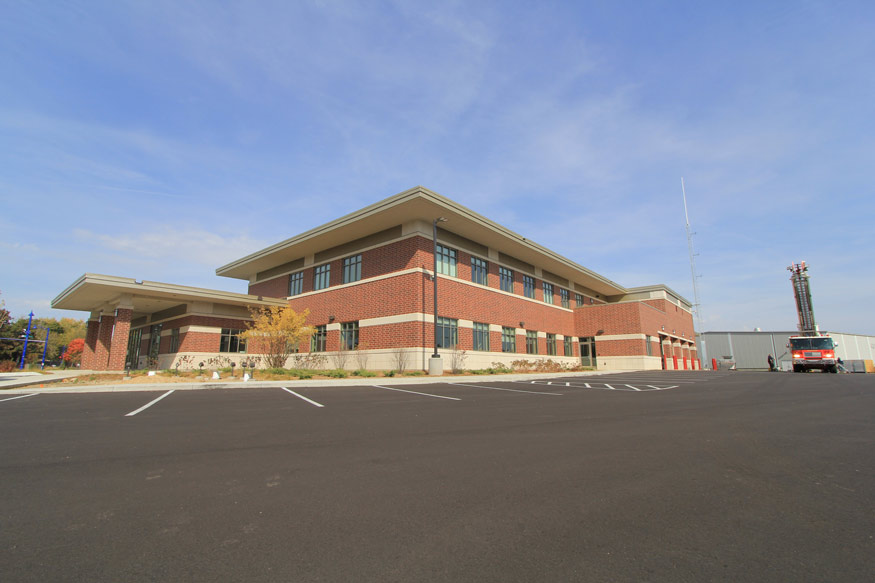

City of Verona Fire and Fitch-Rona EMS Station

Verona, WI
fire and ems station city of verona 13 ac5b6353
fire and ems station city of verona 18 49b92f6e
fire and ems station city of verona 2 f46cb82e
fire and ems station city of verona 8 420b95b3

Project Details

construction new d95992b7
New Construction
loop vertical 86ca017c
Vertical Loop
system combo 3ed6b2f3
Combination
dimensions 46e2d2c3
41,500 sq. ft.

Project Description

As the city of Verona, WI grew, the old Fire and EMS Station was removed to make room for a new complex that included living quarters. The department would expand from a 10,200 sq. ft. facility to a 41,500 sq. ft. facility, and they were motivated to reduce natural gas usage. MEP Associates, a Salas O’Brien Company, is a multi-disciplinary engineering consulting firm. They were tapped to provide HVAC, electrical, plumbing, and fire protection engineering design services. A high-level geothermal feasibility study was conducted to compare the performance of a traditional HVAC system to the proposed geothermal system. The city chose to go with a geothermal hybrid system.

Installation Details

The geothermal hybrid system includes a fan coil air-side system with ERV, a geothermal heat pump with a cooling efficiency of 0.761 kW per ton and heating efficiency of 4.6 COP, and a hybrid gas fired hot water boiler (rated 85% efficiency). A large portion of the square footage is heating only, as the garage space where the fire and EMS trucks are stored does not require cooling. The geothermal system meets most of the heating requirements and provides all of the cooling for the office and living quarters.

Savings

Operating costs reduced by $3,416 annually

Partners Involved

MEP Associates, a Salas O’Brien Company
