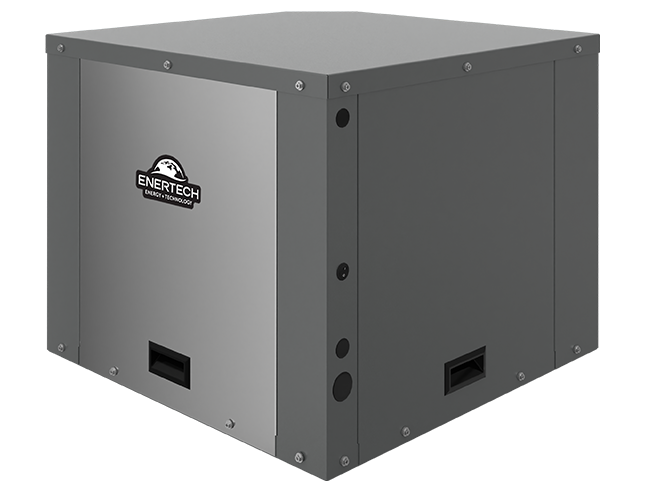

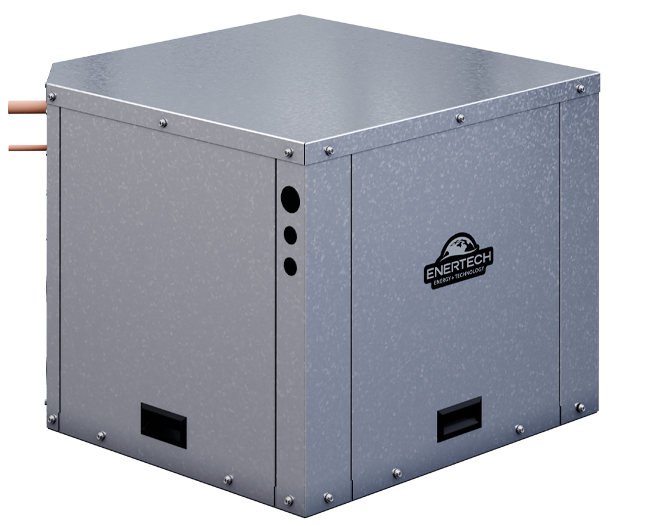

BS/BT

BS/BT | Indoor Split

The Indoor Split (BS/BT) heat pumps provide ducted heating and cooling and hot water assist for up to 40% savings on annual water heating costs. These systems can be paired with a conventional furnace to create a dual-fuel system with optimal energy savings. The BS/BT heat pumps can be used for heating and cooling in small to large homes, storage buildings, agricultural facilities, and more.

COMPATIBLE WITH THE EPIC CONNECTED CONTROLS

Our proprietary EPIC connected controls provide unprecedented insights into the usage, efficiency, and performance of your geothermal system – all in real time! See how to maximize your home’s comfort with EPIC.

More About Epic Connected Controls

Compatible with the DX air handler - Built by Enertech

Unlock the full potential of your geothermal split system for forced air applications with the direct expansion (DX) air handler.

Learn About Our DX Air Handler

Warranty Details

FEATURES

Available sizes: 1.5 to 6 tons
Efficiencies: Up to 28.8 EER / 4.4 COP
Hot water assist
UL GREENGUARD Gold certified cabinet insulation
Heavy gauge steel
Two-stage compressor
Temperature sensor as part of system safeties

Learn More

Document Downloads:

Model Specifications:

Model	BS018
CAPACITY	BS018	Full Load	Part Load
COOLING BTU/HR	21,800	-
COOLING EER	21.10	-
HEATING BTU/HR	18,800	-
HEATING COP	3.90	-

Model	BT024
CAPACITY	BT024	Full Load	Part Load
COOLING BTU/HR	26,300	21,500
COOLING EER	19.50	27.80
HEATING BTU/HR	18,800	15,400
HEATING COP	3.90	4.30

Model	BT036
CAPACITY	BT036	Full Load	Part Load
COOLING BTU/HR	36,900	29,300
COOLING EER	19.20	28.90
HEATING BTU/HR	27,800	22,600
HEATING COP	3.80	4.30

Model	BT048
CAPACITY	BT048	Full Load	Part Load
COOLING BTU/HR	50,300	39,600
COOLING EER	18.40	27.10
HEATING BTU/HR	40,700	32,100
HEATING COP	3.80	4.40

Model	BT060
CAPACITY	BT060	Full Load	Part Load
COOLING BTU/HR	61,100	48,100
COOLING EER	17.60	24.30
HEATING BTU/HR	46,800	38,200
HEATING COP	3.80	4.20

Model	BT072
CAPACITY	BT072	Full Load	Part Load
COOLING BTU/HR	67,200	54,900
COOLING EER	15.80	21.10
HEATING BTU/HR	57,300	47,700
HEATING COP	3.40	3.80
