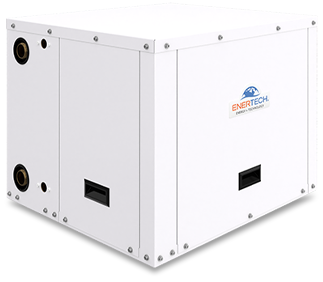

HP | High Performance–High Temperature Water-to-Water

image?src=%7B%22file%22%3A%22wp content%2Fuploads%2Fproducts%2Fhp featured
The High-Temperature Water-to-Water (HP) heat pumps provide high water temperatures that are among the industry’s top hot water assist options. These systems can be used to supply 100% of the hot water needs for a home or building, or it can be used for radiant heating, pool heating, or snowmelt. It’s at home in new construction or an existing home with a small footprint and ability to connect to the same geothermal loop as another system.

FEATURES

  • One size available
  • Efficiencies: Up to 3.2 COP
  • Hot water provider
  • UL GREENGUARD Gold certified cabinet insulation
  • Heavy gauge steel
  • Temperature sensor as part of system safeties
  • Single-stage compressor
Document Downloads:

Model Specifications:

Model HP024 Vented
CAPACITY Full Load Part Load
COOLING BTU/HR 0
COOLING EER 0.0
HEATING BTU/HR 23,000
HEATING COP 3.1
Model HP024 Unvented
CAPACITY Full Load Part Load
COOLING BTU/HR 0
COOLING EER 0.0
HEATING BTU/HR 23,900
HEATING COP 3.2
