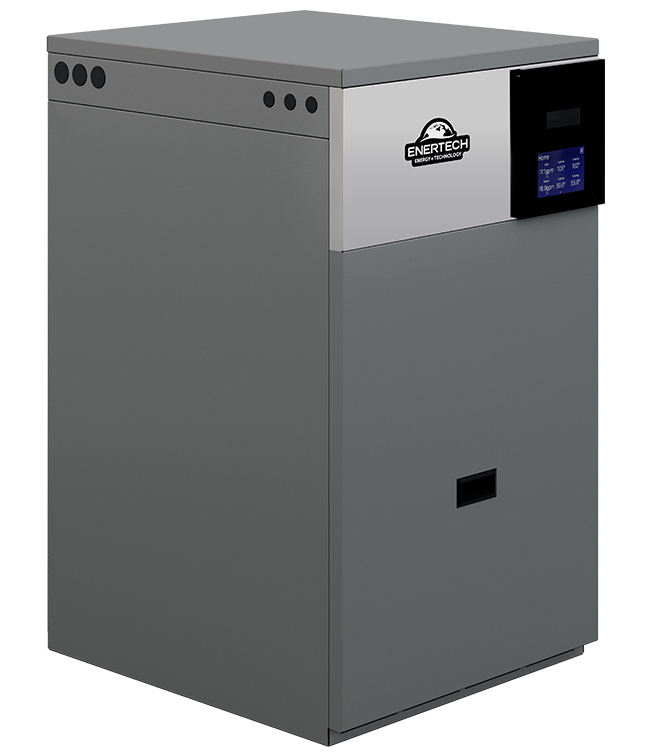

WV | Variable-Speed Water-to-Water

et wv residential featured c1b52f54
The Variable-Speed Water–to–Water (WV) system is the first geothermal heat pump to provide in-floor radiant heating, forced air heating and cooling, and 100% of the home’s domestic hot water in one compact, efficient package. The variable-speed water–to–water can cut your heating and cooling bill by over 30 percent when compared to a standard geothermal system, which means up to 80 percent savings over a traditional HVAC unit. Our EPIC connected controls come standard on all new units.

Compatible With Enertech’s Hydronic Air Handler & Cased Coil

Enertech’s line of Hydronic air handlers and cased coils are a perfect match for our water-to-water units. Maximize comfort and quality by pairing the two together in your next project.

FEATURES

  • Available sizes: One unit covers 2 – 5 tons
  • Efficiencies: Up to 21.6 EER / 3.8 COP
  • Up to 100% domestic hot water
  • UL GREENGUARD Gold certified cabinet insulation
  • Dual fuel compatible with modulating boilers
  • Variable-speed compressor
  • Temperature sensor as part of system safeties and additional outdoor ambient temperature sensor for further efficiencies and comfort

Document Downloads:

Model Specifications:

MODEL WV060
CAPACITY Full Load Part Load
COOLING BTU/HR 41,100 20,900
COOLING EER 17.6 21.6
HEATING BTU/HR 53,900 29,100
HEATING COP 3.2 3.8
Multi-Position Hydronic Air-Handlers
Multi-Position Hydronic Air-Handlers
Antifreeze
Antifreeze
Equipment Pads
Equipment Pads
ERV's
ERV’s
Multi-aqua Fan Coils
Multi-aqua Fan Coils
Thermostats
Thermostats
EWC Zoning Dampers and Panels
EWC Zoning Dampers and Panels
Electronic Dynamic Filter
Electronic Dynamic Filter
Electrostatic Filters
Electrostatic Filters
Auxiliary Heaters
Auxiliary Heaters
Flow Centers
Flow Centers
We offer many optional accessories for each of our geothermal units:
